• New colors and updated styling
• Upgraded to the Bosch Performance electric drivetrain for up to 300% assistance and 65 Nm of torque
• Updated frame with a reclining battery for a lower center of gravity and better ride
• Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
• Integrated Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
• Works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
• Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

SPECIFICATIONS

SPEEDS:1x10

WEIGHT:22.1 kg (48.7 lb)

GEAR INCHES:30" - 97" (2.36 - 7.72 m)

FOLDING SIZE:41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)

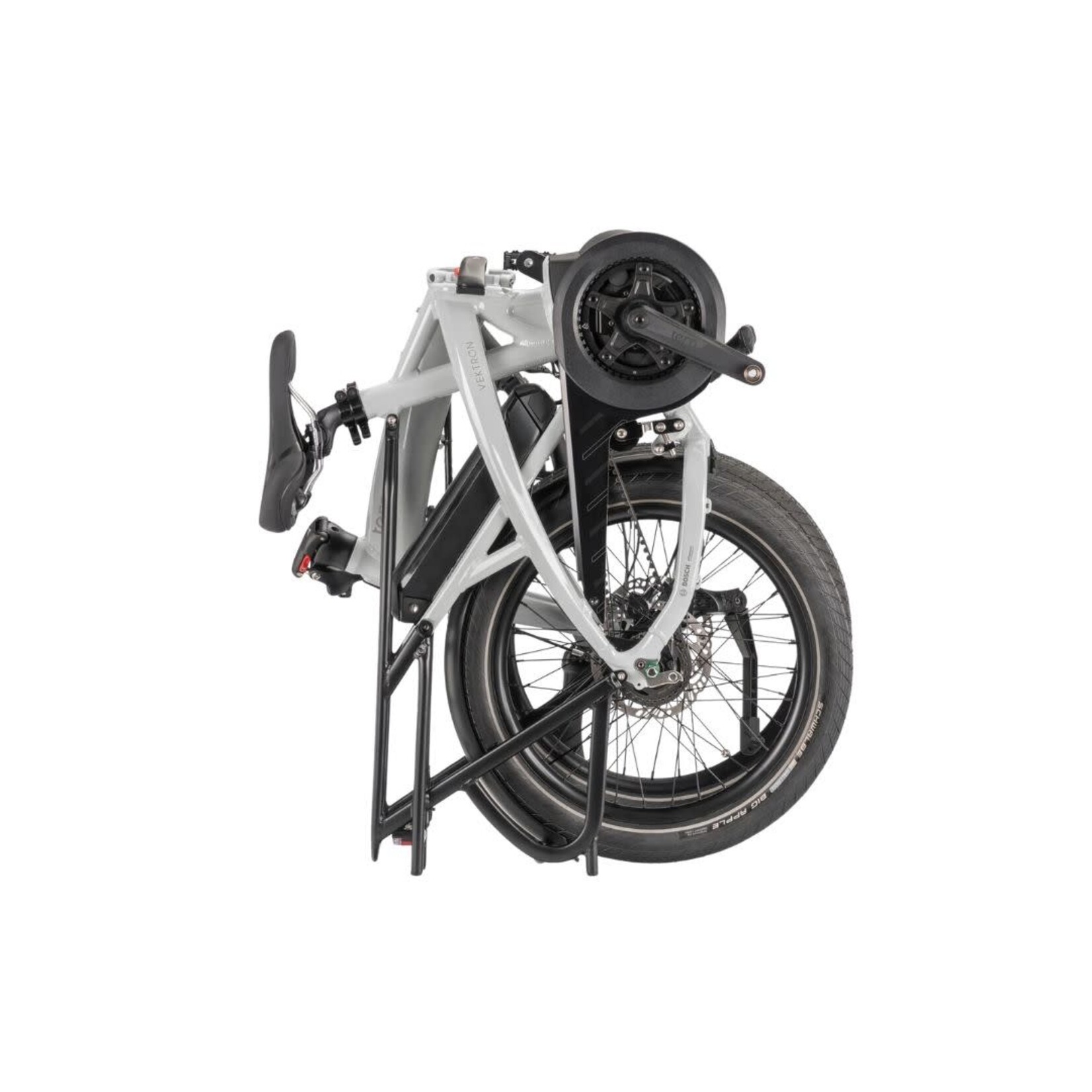

FOLDING TIME:10 sec

FRAME SIZES: One size

DISTANCE: SEATPOST TO HANDLEBAR:62 - 69 cm (24.4 - 27.2 in)

DISTANCE: SADDLE TO PEDAL:67 - 110 cm (26.4 - 43.3 in)

SUGGESTED RIDER HEIGHT:147 - 195 cm (57.9 - 76.8 in)

MAX GROSS VEHICLE WEIGHT:125 kg (275.6 lb)

MAX RIDER WEIGHT:105 kg (231.5 lb)

FRAME: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies

FORK: Tern Tarsus, 6061-Al, hydroformed

HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies

STEM: Tern Andros, adjustable, forged construction, patented technology

HEADSET: Flux Pro, angular contact bearings, Physis integrated

HANDLEBAR: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted

GRIPS/BAR TAPE: Ergon

SADDLE: Tern Porter+, patented GripPad design, PrimeGel padding

SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL

SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc

FRONT BRAKE: Magura MT4, hydraulic disc

REAR BRAKE: Magura MT4, hydraulic disc

BRAKE LEVERS: Magura, hydraulic disc

BRAKE CABLE & HOUSING: Magura, hydraulic disc

FRONT HUB: Novatec, sealed cartridge bearing, disc

REAR HUB: Novatec, sealed cartridge bearing, disc

SPOKES AND NIPPLES: Stainless steel, double-butted

RIMS: Kinetix Comp, for disc

TYRES: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

SHIFTER(S): Shimano Deore, 1 x 10 spd

REAR DERAILLEUR: Shimano Deore Shadow+

CRANKSET: Vektron custom, forged 6061-AL crankarm

CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd

BOTTOM BRACKET: Motor integrated

CHAIN: 10 spd, DHT for eBike, GST corrosion resistant coating

PEDALS: MKS Ezy

SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM MOTOR: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY: Bosch PowerPack 400 Wh

DISPLAY: Bosch Purion, 4 mode selectable, walk assist

RANGE: 400 Wh: 53 -106 km (34-68 mi)

CHARGER: 220V, 4A (EU); 100-240V, 4A (US)

BELL: Aluminum

CHAINGUARD: SKS Chainblade

KICKSTAND: URSUS, rear mount

CLIP SYSTEM: Magnetix 3.0

LUGGAGE SOCKET: Yes

FRONT LIGHT: Tern Valo Direct, 190 lumens

REAR LIGHT: Herrmans H-Trace, for eBike

FENDERS: SKS, stainless hardware

RACK(S): Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
